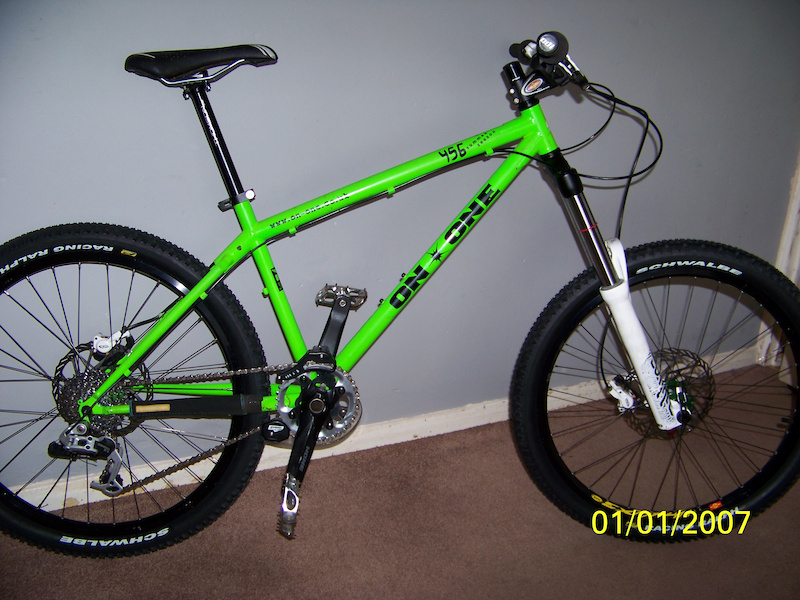

Bike I ride: 456 summer season
Favorite Trails: the one that leads to home
About Me: weebles wobble but they dont fall down
Products Recommended: none - View Products
Companies Supported: none - View Companies
billybopbasher's Activity
billybopbasher commented under iain666's photo ( Aug 1, 2010 at 12:09 )
look...im not trying to be funny, but...that is not a 2004 frame...have a look at oranges website or google a 2004 and a 2001 bike...you'll see the difference just trying to help

billybopbasher commented under iain666's photo ( Aug 1, 2010 at 11:47 )
the 2004 frames had a different front shock mount bud...yours is definitely a 2000 or 2001 at the latest as they changed the front shock mount a few times as the frames evolved. Its a 16" patriot LT..long travel...that model was usually 5" travel but your's having no v brake mounts dictates its a lt.....it has a fox vanilla rc rear shock with a measurement of 190 x 57mm stroke instead of the standard 50mm stroke...due to the leverage ratio, this gives you the extra inch of rear wheel travel..if its the standard spring then it'll be 450lb. on the 2004 the front shock mount was welded between the downtube and the toptube(ive had a few) whereas yours hasn't(also had a few lt's) also...the 2004 bikes used a different shock...normally 5th element coil/manitou swinger 3 or 4 way coil or air
